CFD

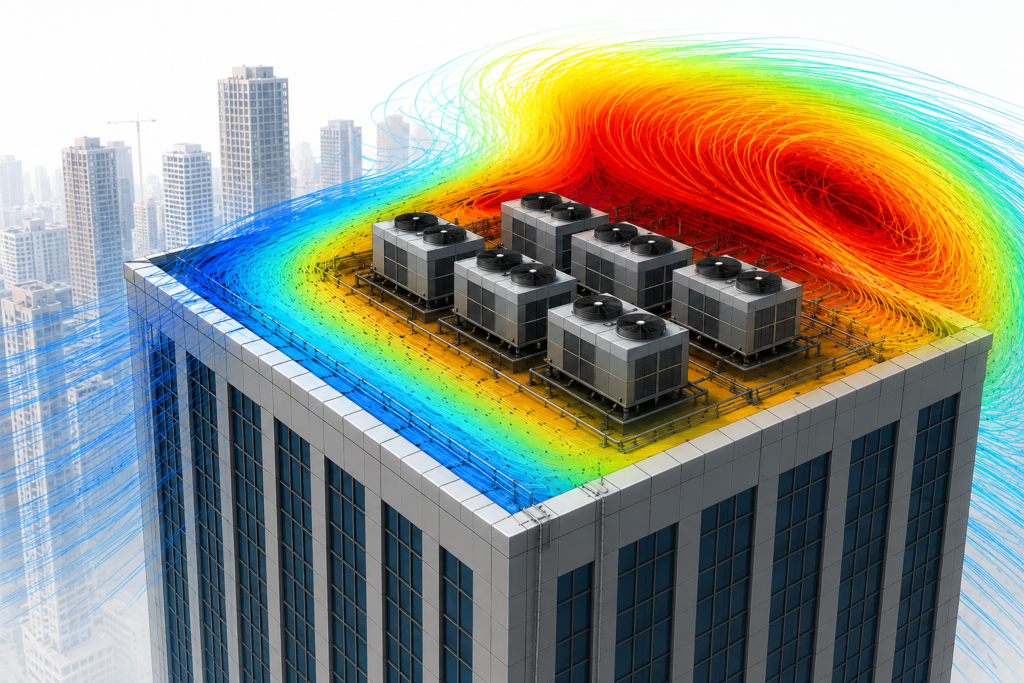

Figure: CFD thermal simulation of rooftop HVAC chiller units showing velocity streamlines and temperature distribution: identifying hot-air recirculation before construction. DIRECT ANSWERComputational Fluid Dynamics (CFD) is a numerical simulation method that predicts how air, liquid, pressure, and heat behave around and inside a product by solving the governing physics equations across a 3D digital model. It matters whenever airflow, cooling, liquid flow, or thermal behaviour affects your product’s performance, reliability, efficiency, or safety — because it finds problems like trapped heat or poor airflow before you cut any tooling. KEY TAKE AWAYS EXECUTIVE SUMMARY: • CFD is a digital experiment: a 3D model is divided into a mesh of thousands to millions of cells, and a solver calculates velocity, pressure, temperature, and turbulence in each one. • It splits into two related questions: thermal simulation (does it overheat?) and flow/aerodynamic simulation (does air or fluid move where it needs to?). • Electronics enclosures, battery packs, HVAC/pump/valve systems, and aerodynamic products are the categories that consistently benefit. • CFD doesn’t replace physical testing — it eliminates weak design options early so physical testing validates a design that’s already been through several iterations. • CFD run after the CAD is frozen becomes documentation, not a design tool. Run early, it actively shapes the geometry. Most engineering teams have heard of CFD. Far fewer have a clear answer for when it’s worth commissioning versus when it’s overkill. This guide covers what CFD actually calculates, the product situations where it consistently pays for itself, and what a real engineering deliverable looks like — not just the colorful contour plots. What CFD Actually Simulates At its core, CFD is a digital experiment. Instead of building a physical prototype first, engineers create a 3D model of the product and divide it into a mesh — a network of thousands, often millions, of small computational cells that lets the software solve the governing equations of fluid motion and heat transfer across the entire geometry. For every mesh cell, the solver calculates: Together, these results build a complete picture of how air, liquid, or gas behaves inside and around a product — the same picture you’d otherwise only get by instrumenting a physical prototype. Figure: The mesh behind the picture: rooftop condenser units and their surrounding air domain broken into thousands of computational cells before the solver runs. Thermal (Heat Transfer) Simulation Thermal simulation focuses on how heat is generated, conducted, and dissipated within a product. It answers questions like: Will the electronics overheat? Does the enclosure trap heat? Is the heatsink sized correctly? Will battery temperatures stay within operating limits? Many products also require conjugate heat transfer — solving heat transfer through solid components and the surrounding fluid simultaneously. This is more realistic than a solids-only or fluid-only model, because heat doesn’t stop at a component’s surface; it moves continuously between solid and fluid. Flow & Aerodynamic Simulation Flow simulation examines how fluids move through or around a product: Does airflow actually reach every cooling component? Is pressure loss too high inside a duct? Will turbulence reduce performance? How much drag does the enclosure create? Thermal and flow simulation are frequently run together, because airflow directly governs cooling performance — you can’t accurately predict one without the other. How a CFD Study Actually Runs Every CFD project moves through the same six stages, regardless of product type. Knowing them makes it easier to scope a study and to see where the timeline and cost actually come from. Figure: From geometry to insights: the six stages every CFD study passes through, shown here on a centrifugal pump colored by flow velocity. 1.  Geometry — the CAD model is imported and the fluid domain (the air or liquid volume around and inside the part) is defined. 2.  Mesh generation — the domain is divided into a high-quality mesh; mesh density and quality directly control result accuracy. 3.  Setup — material properties and operating conditions (boundary conditions) are defined to match real-world use. 4.  Solver run — the simulation runs and convergence is monitored to confirm the solution is stable and physically valid. 5.  Post-processing — flow behavior and performance are analyzed through contour plots, streamlines, and quantified metrics. 6.  Insights — results are translated into actionable engineering recommendations, not just images. Done well, this workflow delivers performance improvement, design optimization, and early risk mitigation — catching cavitation, recirculation, or hotspots — while cutting the number of physical prototypes needed to get there. Five Signs Your Product Needs CFD Not every product needs CFD. These are the design situations that consistently justify it before hardware gets built. 1. Electronics that generate significant heat A sealed enclosure can look fine in CAD yet trap hot air around a processor or power stage. After roughly 20 minutes of operation, temperatures climb enough to trigger thermal throttling or shorten component life. CFD finds these hot spots before a prototype exists, so ventilation, heatsink sizing, or component placement can still change. 2. Battery systems with cooling challenges Battery packs depend on uniform temperature across cells. Poor cooling creates localized hot regions that accelerate cell ageing, cut performance, and raise safety risk. CFD maps airflow paths, coolant distribution, and cell-to-cell temperature variation before an expensive prototype pack gets assembled. 3. HVAC, pumps, valves, and fluid-handling equipment Products that intentionally move air or liquid depend on efficient flow. A duct can introduce unnecessary pressure loss, a valve can create excessive turbulence, or a pump housing can trap a recirculation zone that quietly kills efficiency. CFD makes these hidden flow behaviors visible before manufacturing. 4. Aerodynamic products Drones, automotive components, industrial equipment, outdoor electronics, and cooling fans are all exposed to external airflow. A housing that looks streamlined in CAD can still create separated flow that increases drag, vibration, or wind noise. CFD predicts this early enough for geometry changes to stay practical. 5. Products where prototype failures are expensive Some fixes are cheap. Others mean redesigning tooling, modifying castings, rebuilding prototypes, or repeating compliance testing. If discovering a thermal or airflow problem after fabrication would delay the project
